Overview

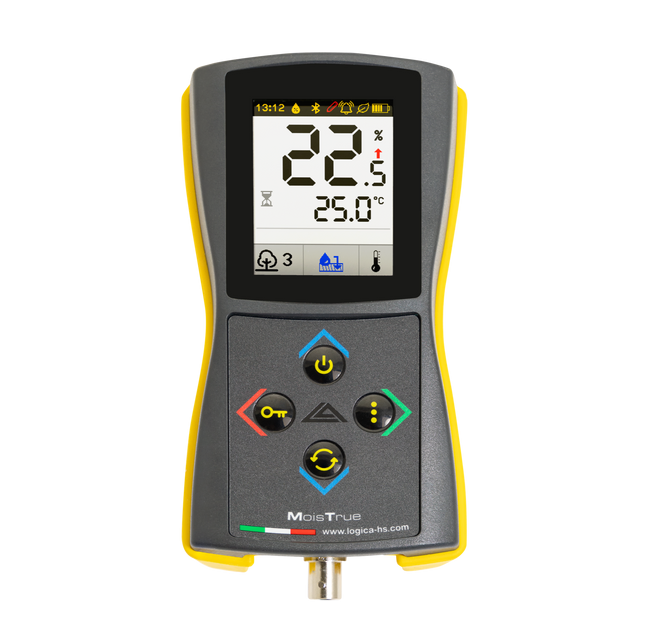

MoisTrue is a pin-type moisture meter that calculates the moisture content of materials by measuring the electrical resistance through two electrodes that must be driven into the material.

The instrument can be used to measure the moisture content in different materials (wood, building materials, leather).

It is particularly suitable for measuring the humidity of wood, even if not perfectly dried/seasoned, allowing to also detect the distribution of humidity through the material using special electrodes with insulated stems

How does it work?

The measurement is performed using an alternating current, ensuring optimal stability even in the case of high humidity content.

The compensation method for the different timber species can be chosen from the traditional 4-group classification or the AS / NZS 1080.1: 2012 standard, which includes over 400 individually listed and classified wood species.

The indication of the humidity of the wood is automatically compensated on the basis of the temperature of the wood, which can be set manually by the operator (useful when measuring the wood that has just left the dryer) or measured by the instrument from its internal sensor or from the sensor UR/T external (optional).

specification

• Recommended measuring range (wood): 8-40%
• Classification based on wood groups: 4
• Classification based on wood species: 480
• Building material groups: 7
• Leather groups: 2
• Internal temperature indication: -10 / 50 ° C
• USB interface
• Bluetooth interface
• Power battery: 3 AAA batteries
• Autonomy: about 35 hours.
• Case dimensions: 32.5 x 26 x 8 cm
• Case weight (/T- /M- /TM): 1.3 - 3.0 - 3.5 kg
• Temperature indicator
• Low battery indicator
• Compensation of microprocessor measurements
• Temperature compensation with internal, external or settable temperature
• Extensive library of wood species (over 400 species)
• Log of measured data High/low humidity alarms
• Measurement of air temperature, RH and EMC (with optional sensor)
• Automatic shutdown
• Android APP for measured data collection
• Measured data archive downloadable from USB
